Hausbot Houseboat SCHAB Haus 9.3x3m

We present to you the project of a new houseboat measuring 9.3x3m, intended for living, recreation, sailing, for inland waterways of classes 3 and 4, alternatively for coastal sailing, CE category D.

The size allows for easy transport, we can adjust the dimensions according to requirements... Conceptually, the houseboat is designed as a single-hull, pontoon-shaped float made of high-quality corrosion-resistant aluminum alloy, reinforced with profiles, divided into 4 waterproof sections. The deck of the vessel is almost flush with the ground, with a large lower deck where there is space to store all the necessary things, supplies, technology...

The price includes an external deck, a superstructure made of sandwich cladding with 80mm PUR insulation (80mm PUR insulation is like 160mm insulating mineral wool), plastic windows/doors made of insulating double glass, internal cladding made of large-area laminate boards, internal cladding of partitions for furniture is standard, the ceiling is a smooth white sandwich panel. The interior floor is made of laminate parquet, vinyl in the bathroom.

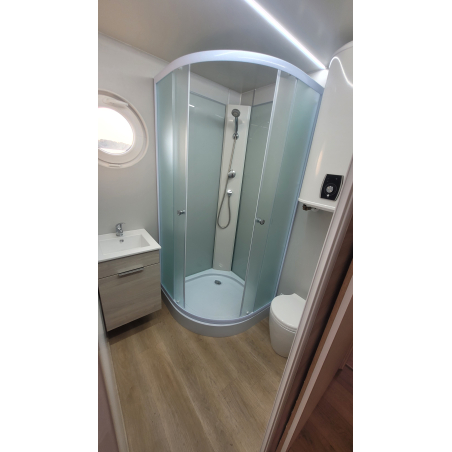

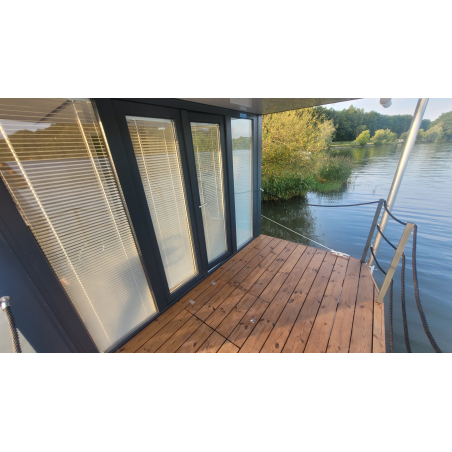

The houseboat is conceptually designed - in the front part a spacious living room of 8m2 with large balcony doors for better contact with the environment, in the middle part a kitchenette with a bathroom (optional), in the back part a bedroom of 5.5m2 with a 2x1.6m raised bed with storage space underneath and a chest of drawers (optional). In the 1.4m wide kitchenette (optional) an induction cooker, refrigerator, sink, upper cabinets are designed, in the bathroom a 90cm shower box, sink with cabinet, electric or gas boiler, standard/ship/chemical toilet (optional). In the front and back parts there are exterior deck accesses to the bulkheads, in the back it is possible to place a PB bottle, PHM tank, ... (optional) In the back part it is possible to install an outboard motor up to 70hp, or rear bathing platforms (optional). A control console and control mechanisms must be ordered for the motor houseboat. To use the roof, it is possible to install stairs to the upper sun deck or a ladder (optional). Since the houseboat can be individually built, other necessary systems are installed depending on the purpose of the vessel. Photovoltaics can be ordered for basic lighting power or for stronger consumption. Houseboat systems can be ordered for autonomous year-round use using a combination of photovoltaics, LPG heating or diesel heating. Depending on the use, it is possible to install sewage tanks up to a volume of 2m3, which can be pumped from the shore, or drinking water tanks. For the crew's comfort, curtains, nets, blinds, fireplace stoves, etc. For more permanent mooring, we offer a remote-controlled folding bridge and anchor rods as an additional order. Main parameters: L=9.3m B=3.0m H=0.62m T=0.26m Vmax=6.0t* Pmax=60k Crew 6-10 people* CE:D * Some items need to be combined with others, more information www.shiptech.sk

* For more information about the product and possible modifications, please contact: www.shiptech.sk www.lodeaclny.sk tel: +421903247170 +421903952267

** Installment 499 EUR/month/8 years calculated from the base price, down payment 6999 EUR, interest rate 6.99%, loan subject to bank approval

Hausbot 9.3 x 3m base price from, CE certificate €39,999 Eur with VAT

Additional equipment see attachment pdf
