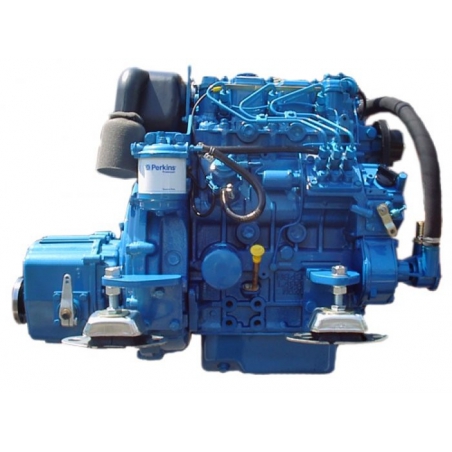

JLM PERKINS 3.34

JLM marine diesel engine of the latest generation based on PERKINS. The basic engine is designed for industrial use and adapted for marine use in the most difficult working conditions, which guarantees reliability and long service life. We have achieved clarity and simple and cost-effective maintenance through intelligent design and high quality.

The indirect engine cooling system (cooling of the coolant in the heat exchanger using seawater) guarantees optimal operating temperature in all operating conditions. Thanks to its low weight, minimal noise and vibration levels and compact dimensions, it is ideal for installation on sailboats, recreational, work and fishing boats. The new generation of JLM marine engines complies with strict exhaust emission laws worldwide (EU Stage IIIB and US EPA Tier 4)

JLM PERKINS 3.34

Technical parameters:

-base: Perkins: 403D-15

-shaft power kW/hp: 25.1/33.7

-max. speed rpm: 3000

-number of cylinders: 3

-displacement cc: 1496

-cooling: heat exchanger

-filling: atmospheric

-alternator: 12V/65A

-control panel: analog, CPS

-weight with gearbox kg: 204

- KBS080 gearbox

(gear ratio: 1:1.96 or 1:2.72)

-KBS200 gearbox

(gear ratio: 1:1.52 or 1:1.92 or 1:2.84)

Standard equipment:

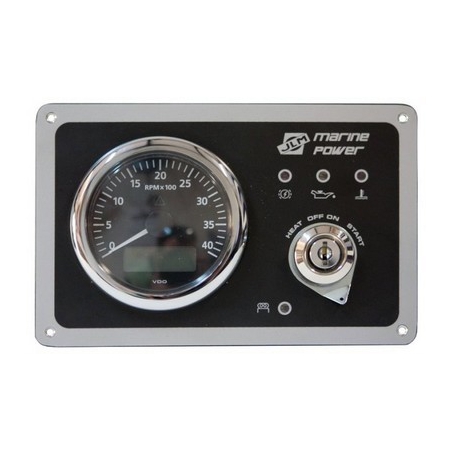

-el.control panel with 5m connecting cable-rev. indicator, engine hours, sound alarm, start. key, glow plug

-silent blocks

-manual oil service pump

-alternator

The price of the engine does not include shipping to the Slovak Republic, the shipping price depends on the type and accessories 250-400 Eur including VAT

We will be happy to advise you when choosing an engine and gearbox.

24 months warranty
